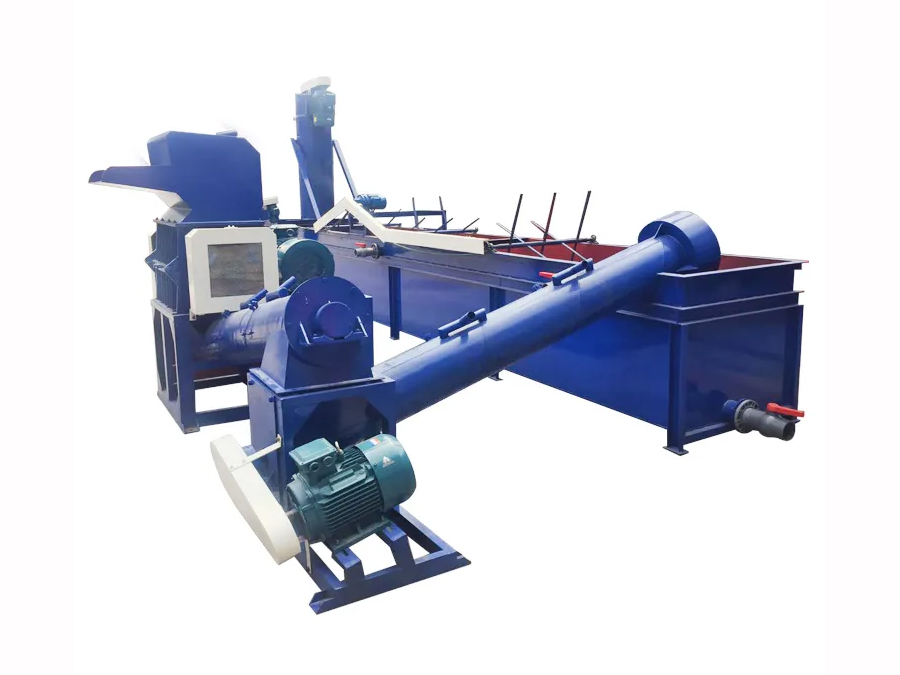

This production line is specifically designed for cleaning and drying waste plastic films including PP, PE, HDPE and LDPE. The complete system consists of: Crusher, Washing machine, Rinsing tank, Material lifting and dewatering centrifuge.
All components are manufactured using premium materials and precision engineering processes, ensuring both appearance and quality meet international standards.
Application
Specification
| Model | PX-IIB400 | PX-IIB450 | PX-IIB550 | PX-IIB600 | PX-IIB700 |
| Body Width(mm) | 500 | 600 | 800 | 1000 | 1200 |
| Rotation Diameter(mm) | 400 | 450 | 550 | 600 | 700 |
| Spindle Speed(r/min) | 700 | 700 | 700 | 650 | 650 |
| Spindle Drive Power(kw) | 18.5 | 22 | 30 | 45 | 55 |
| Total Number of Tools | 5 | 8 | 10 | 10 | 13 |
| Total Weight(kg) | 1400 | 2000 | 2600 | 4000 | 7300 |
| Production Capacity(kg/h) | 300-350 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
| Length of Washing Barrel(mm) | 2500 | 3000 | 3300 | 4000 | 4300 |
| Washing Drive Power(kw) | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotation Diameter(mm) | 400 | 450 | 550 | 600 | 700 |
| Spindle Speed(r/min) | 650 | 650 | 600 | 590 | 550 |
| Driving Power(kw) | 18.5 | 22 | 30 | 45 | 55 |
| Total Number of Tools | 8 | 8 | 10 | 10 | 13 |
| Total Weight(kg) | 1100 | 1600 | 2200 | 3500 | 6500 |
| Production Capacity(kg/h) | 300-350 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
