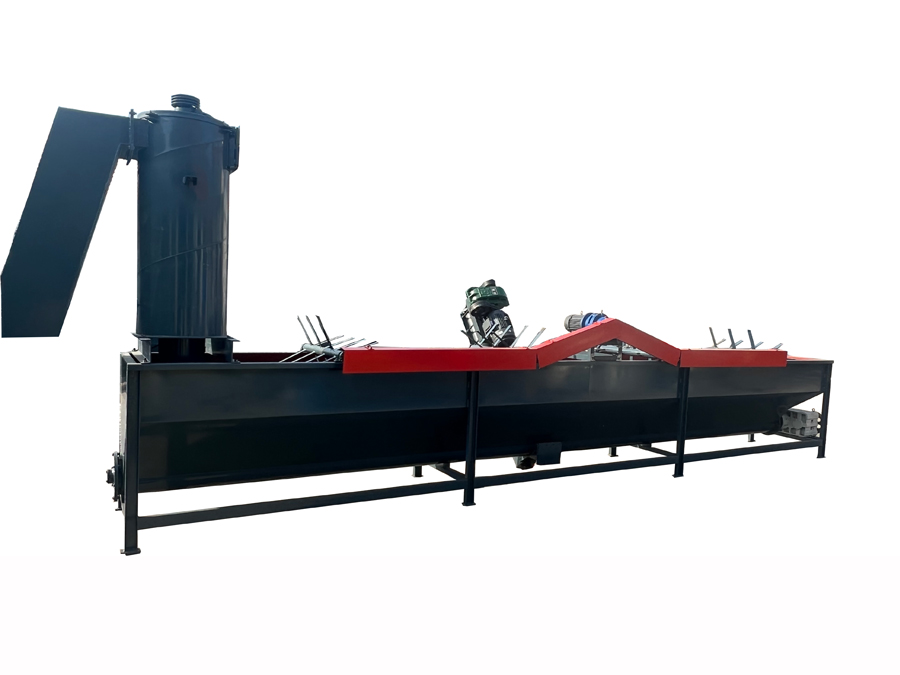

Compared with the ordinary production line, the unit adopts a high-speed friction cleaning machine and a spiral bottom push slag discharge tank. The material is strongly cleaned by the high-speed friction cleaning machine and the secondary rinsing of the bottom push slag discharge tank, so that the cleanliness of the plastic is higher, the discharge of sludge impurities is more convenient, and the work efficiency is higher.
The materials used in the production line are made of excellent raw materials and fine production process, so that its appearance and quality are up to international standards.
Application
Specification
| Model | PX-IIB400 | PX-IIB450 | PX-IIB550 | PX-IIB600 | PX-IIB700 |
| Body Width(mm) | 500 | 600 | 800 | 1000 | 1200 |
| Rotation Diameter(mm) | 400 | 450 | 550 | 600 | 700 |
| Spindle Speed N(r/min) | 700 | 700 | 700 | 650 | 650 |
| Spindle Drive Power P(kw) | 18.5 | 22 | 30 | 45 | 55 |
| Total Number of Tools T(B) | 5 | 8 | 10 | 10 | 13 |
| Length of Washing Barrel(mm) | 2500 | 3000 | 3300 | 4000 | 4300 |
| Washing Drive Power(kw) | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Total Weight(Kg) | 1400 | 2000 | 2600 | 4000 | 7300 |
| Production Capacity Q (kg/h) | 300-350 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
