This model is generally suitable for large units, adding a paper-plastic separator (refiner), and a crushing and cleaning production line designed for a class of materials containing label paper (adhesive). After the material is crushed and cleaned for 1 times, it enters the refiner. After refining, it enters the water tank for rinsing, and the discharged water and impurity pulp enters the filter screen. The problem of removing adhesive label paper is solved. Make plastics cleaner and more efficient.

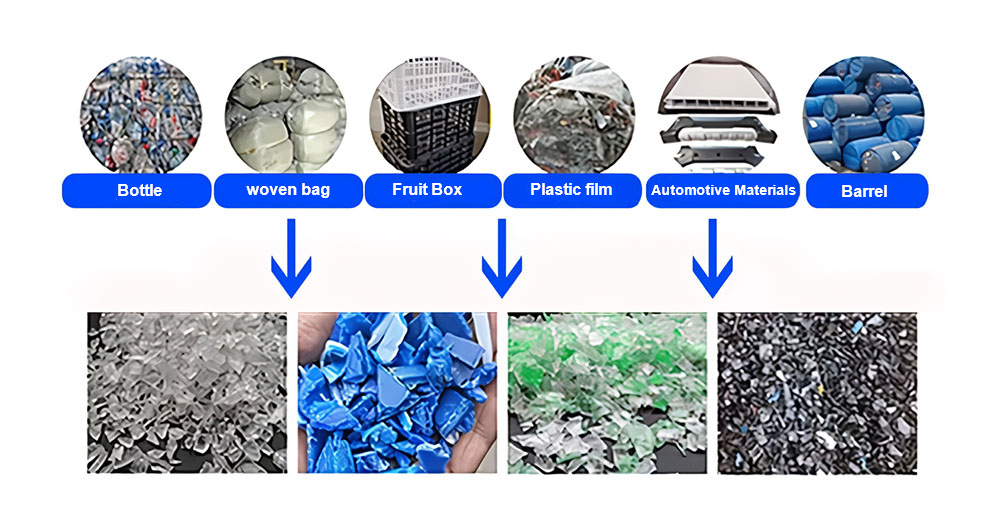

Application
Specification
| Model | PX-IIB400 | PX-IIB450 | PX-IIB550 | PX-IIB600 | PX-IIB700 |
| Body Width(mm) | 500 | 600 | 800 | 1000 | 1200 |
| Rotation Diameter(mm) | 400 | 450 | 550 | 600 | 700 |
| Spindle Speed N(r/min) | 700 | 700 | 700 | 650 | 650 |
| Spindle Drive Power P(kw) | 18.5 | 22 | 30 | 45 | 55 |
| Total Number of Tools T(B) | 5 | 8 | 10 | 10 | 13 |
| Length of Washing Barrel(mm) | 2500 | 3000 | 3300 | 4000 | 4300 |
| Washing Drive Power(kw) | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Total Weight(Kg) | 1400 | 2000 | 2600 | 4000 | 7300 |
| Production Capacity Q(kg/h) | 300-350 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
