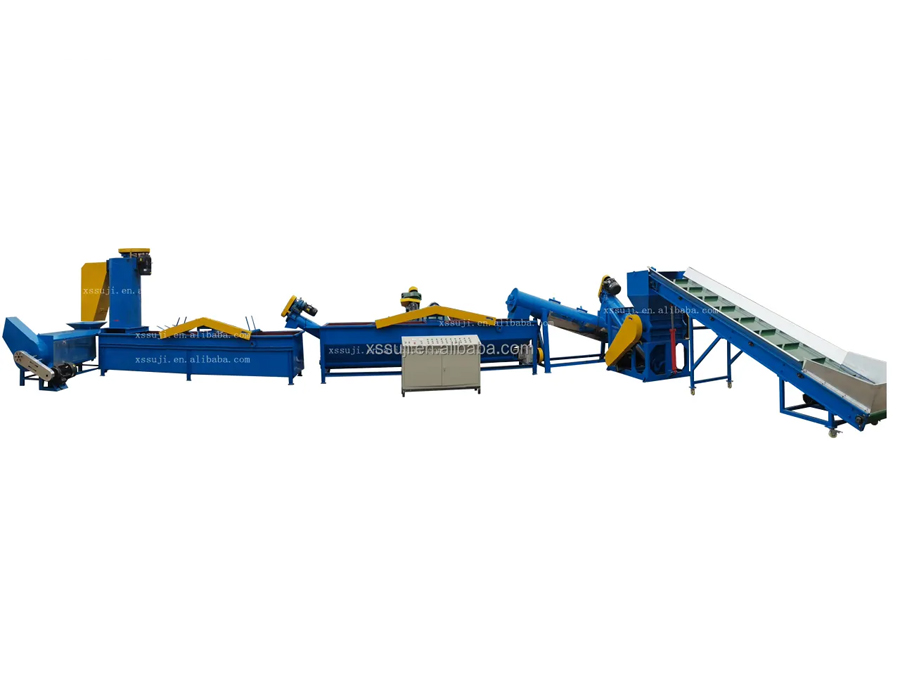

Ton Bag Double Tank Crushing and Washing Line

Classification: Fully Automatic Crushing and Cleaning Production Line
Details

This unit is equipped with a weighted crusher, which is suitable for crushing and cleaning hard plastics such as ton bags and woven bags. The one-step rinsing tank adopts a spiral bottom pushing tank to facilitate the discharge of impurities such as silt. After the 2-step tank is cleaned again, the cleanliness of the plastic reaches a higher level.


Application

Specification

ModelPX-IIB400PX-IIB450PX-IIB550PX-IIB600PX-IIB700
Body Width(mm)50060080010001200
Rotation Diameter(mm)400450550600700
Spindle Speed N(r/min)700700700650650
Spindle Drive Power P(kw)18.522304555
Total Number of Tools T(B)58101013
Length of Washing Barrel(mm)25003000330040004300
Washing Drive Power(kw)7.57.5111518.5
Total Weight(kg)14002000260040007300
Production Capacity Q(kg/h )300-350300-450500-600700-10001200-1500
